sell I2CBC1020BH 3244.50 GBP

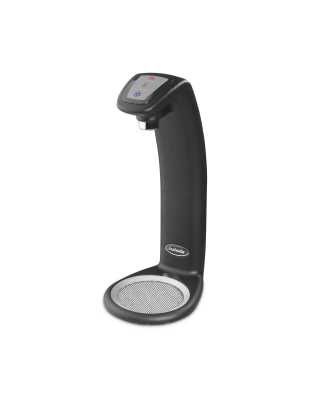

I2CBC1020BH INSTATAP G2 COMMERCIAL BOILING 10LTR CHILLED 20LTR MATT BLACK HIGH

INSTATAP UNDER COUNTER

I2CBC1020BH INSTATAP G2 COMMERCIAL BOILING 10LTR CHILLED 20LTR MATT BLACK HIGH

£3,244.50 (Ex VAT)

In stock
I2CBC1020BH
I2CBC1020BH

With easy to use illuminating button dispense, the new InstaTap continues to provide quick and easy access to instant filtered boiling water to rapidly reduce waiting times while now also ensuring user-safety due to an antimicrobial additive on the keypad, reducing 99.99% bacteria.

2 YEAR WARRANTY

Features and Benefits

  • Free pour boiling and chilled dispense
  • Boiling water safety lock
  • Antimicrobial additive on the touchpad which kills 99.99% of bacteria
  • Smooth flow water dispense to minimise spluttering and steam
  • Limescale and taste & odour filter included
  • Electronically controlled for constant temperature up to 96°C
  • Early warning diagnostics with LCD read-out
  • Automatic re-circulating mode to prevent under temperature drinks

Installation Easy to install with font positioned in work surface with boiler sited below. Adequate space around unit to provide sufficient airflow and ventilation.

Electrical Boiling command center is fitted with 1.7 metres of cable with 13 amp moulded plug. Chilled command center is fitted with 1.4 metres with a 13 amp moulded plug.

Plumbing Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4” BSP) food quality hose supplied. An isolating valve should be installed between the supply and the machine. Right-hand side water connection.

SELECTED FEATURES

SPECIFICATION FOR I2CBC1020BH InstaTap G2 Commercial boiling 10ltr chilled 20ltr Matt Black High

Height (mm)
520 - Boiling
Height (mm)
390 - Chilled
Width (mm)
230 - Boiling
Width (mm)
180 - Chilled
Depth (mm)
340 - Chilled
Depth (mm)
415 - Boiling
Font width (mm)
150
Font depth (mm)
197
Font height (mm)
275
Font clearance (mm)
195
Tap font
High

TECHNICAL DATA FOR I2CBC1020BH InstaTap G2 Commercial boiling 10ltr chilled 20ltr Matt Black High

Power loading (kW)
3 - Boiling
Power loading (kW)
0.185 - Chilled
Heat-up time (mins)
20 - Boiling
Rapid Draw-Off (litres)
10 - Boiling
Rapid Draw-Off (cups)
60 - Boiling
Hourly Output (cups)
180 - Boiling
Hourly Output (cups)
180 - Chilled
Stand by Loss (kW/h)
0.12 - Chilled
Stand by Loss (kW/h)
0.77 - Boiling
Keypad
Antimicrobial SteriTouch

I2CBC1020BH InstaTap G2 Commercial boiling 10ltr chilled 20ltr Matt Black High
HAS THE FOLLOWING SPARE PARTS AVAILABLE:
